Detail Information

Type: Household Power Source: Electric
ADC Module: 12-bit High-precision ADC Module For Accurate Temperature Measurement LED Display: Supports Up To 11 Segments And 8 Digits, Adjustable Brightness With 16 Levels
Touch Sensitivity: Highly Sensitive Touch, Capable Of Passing CS Dynamic And Static 10V Touch Channels: All Pins Can Be Configured As Touch Channels
PWM: 10-bit PWM With Independently Adjustable Period And Duty Cycle Power Adjustment: Enables Precise Adjustment Of Power
High Light:

Household Living Appliances

,

Electric Living Appliances

,

ODM quick turn pcb boards

Product Description

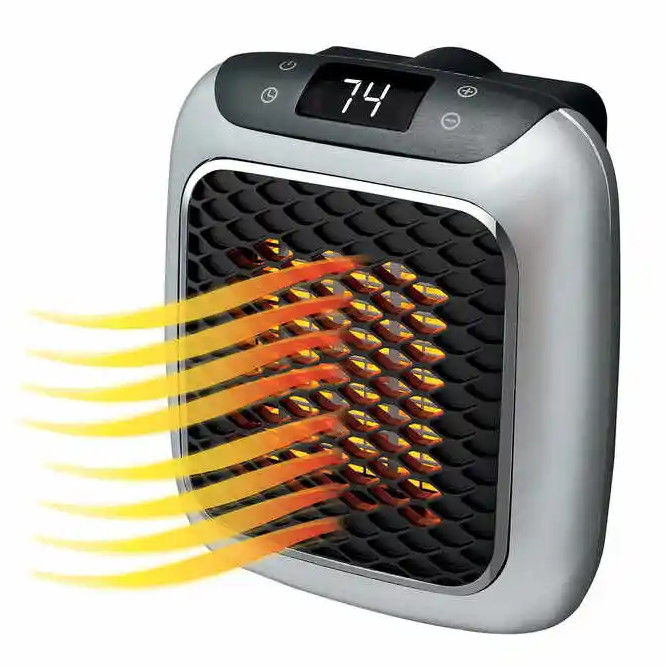

Smart electric heater solution





Description



In view of the functional characteristics of the electric heater products on the market, Golden Triangle Group has launched a cost-effective smart electric heater solution with simple peripheral circuits, adjustable power, intelligent temperature control, high temperature protection, and dual protection functions for dumping and power failure, which are safe and reliable.





Electric heater program performance characteristics:



> 12bit high-precision ADC module, which can realize accurate temperature measurement

> LED display supports up to 11 segments and 8 digits, 16 levels of brightness can be adjusted, which can simplify the peripheral LED drive circuit

> Highly sensitive touch, easy to pass CS dynamic and static 10V, all pins can be configured as touch channels

> 10-bit PWM, the period and duty cycle are independently adjustable, which can realize the precise adjustment of power



Attribute Attribute Value
ADC module 12-bit high-precision ADC module for accurate temperature measurement
LED display Supports up to 11 segments and 8 digits, adjustable brightness with 16 levels
Touch sensitivity Highly sensitive touch, capable of passing CS dynamic and static 10V
Touch channels All pins can be configured as touch channels
PWM 10-bit PWM with independently adjustable period and duty cycle
Power adjustment Enables precise adjustment of power





System diagram



Smart Electric Heater Solution Living Appliances Quick Turn PCB Boards 0
